2.4GHz 24dBi Grid N-Type Male Pigtail DieCast [EZ-GD24R24PNM]

Product Links
pdf Link Datasheet

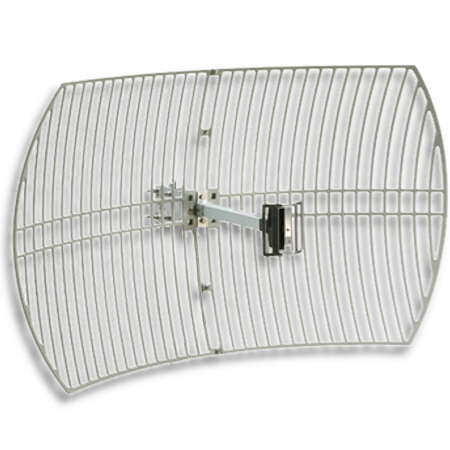

The EZ-GD24R24PNM antenna is an Aluminum-Magnesium (Al-Mg) alloy die cast construction which is then UV powder coated for additional environmental protection, durability and aesthetics.

The antenna is constructed of 2 separate light weight but superior strenght die cast aluminum pieces which are assembled together during installation.

The antenna comes complete with the die cast grid, feedhorn with 30cm pigtail (N-Male connector), and heavy duty mounting bracket. The bracket gives up to 45o of tilt angle.

Because of it's grid design the antenna offers excellent wind loading characteristics.

The antenna can be installed in Vertical or Horizontal Polarization.

TECHNICAL SPECIFICATIONS
Frequency Range
 2400-2483.5 MHz
Bandwidth 83,5 MHz
Gain 24 dBi
Polarization Vertical or Horizontal
Vertical BeamWidth 14°
Horizontal BeamWidth 10°
Impedance 50 Ohm
Max. Input Power 100 Watts
V.S.W.R. <1.5:1
Weight 3.5 Kgr
Antenna Dimensions
 600 x 900 mm
Front to Back ratio >30 dB
Feedhorn Material Aluminum, Plastic
Grid Material Aluminum-Magnesium (Al-Mg)
Color Grey
Mounting 25mm to 50mm
Rated Wind Velocity 60m/s
Connector N-Type Male with 30 cm pigtail
Package Contents:
1x Die cast Grid set
1x Feedhorn with N-Type Male pigtail
1x Mounting Bracket Kit

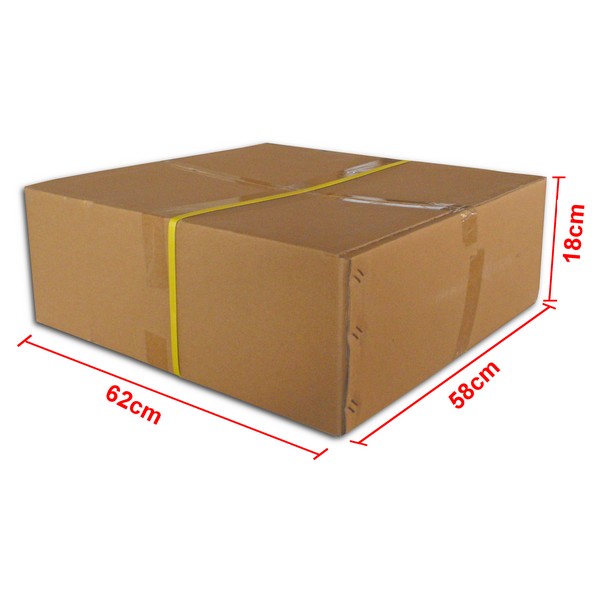

Packing Info:
Q.ty (Pcs)
 Dimensions (cm)
 Weight (Kg)
1
 62x58x18 3.5
5
 60x64x25 14.1
