2400-2485MHz 8dBi OMNI Pigtail Antenna [EZ-OM24V08PNM]

Product Links
pdf Link Datasheet

2400-2485MHz 8dBi OMNI Antenna with Pigtail

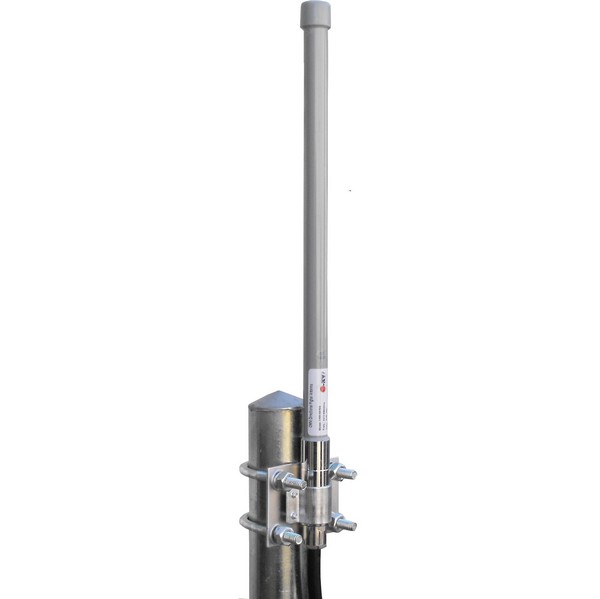

The new e-zy.net OM24V08PNM OMNI Directional Antenna is made from sealed UV Stabilized Fiberglass with steel base and is available with a 35cm 400-type coaxial cable terminated to an N-Type Male Connector.

The gain of this antenna is 8dBi and comes with 20o of Vertical BeamWidth.

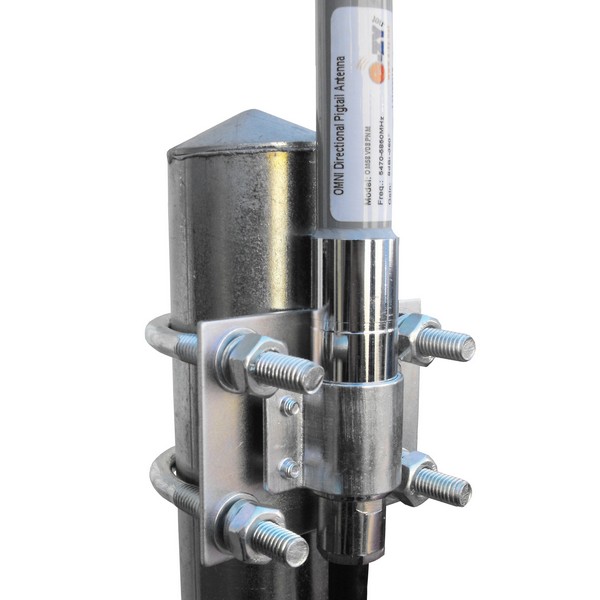

The antenna is supplied with steel mounting bracket and hardware for 25mm to 50mm diameter pole.

The OM24V08PNM is ideally suited for MultiPoint applications where wide coverage is desired.

TECHNICAL SPECIFICATIONS
Frequency 2400-2485MHz
Gain 8dBi
Polarization Vertical
Vertical BeamWidth 20°
Horizontal BeamWidth 360°
Impedance 50 Ohm
Max. Input Power 100 Watts
V.S.W.R. <1.5:1 avg.
Weight 0.87 Kgr
Length 810mm
Diameter 19mm
Radome Material UV-Inhibited Polymer
Mounting Bracket
25mm to 50mm
Connector N-Type Male with 310mm pigtail
Rated Wind Velocity 60m/s
Package Contents:

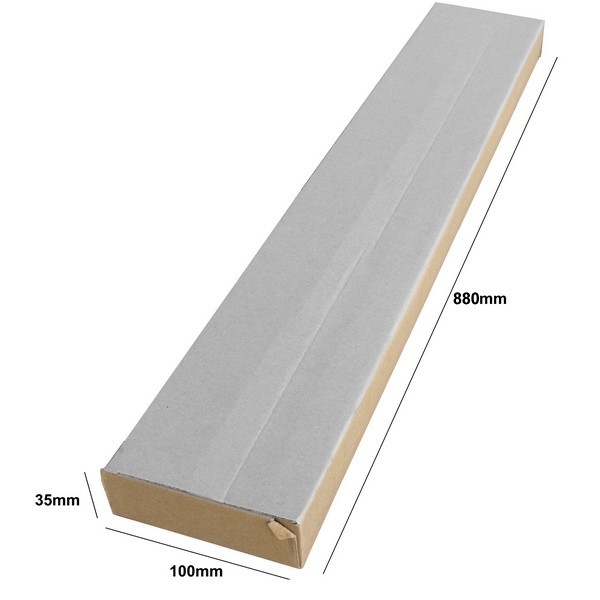

1x EZ-OM24V08PNM OMNI Antenna in brown carton
1x Mounting Bracket
