2400-2485MHz 10dBi OMNI Antenna

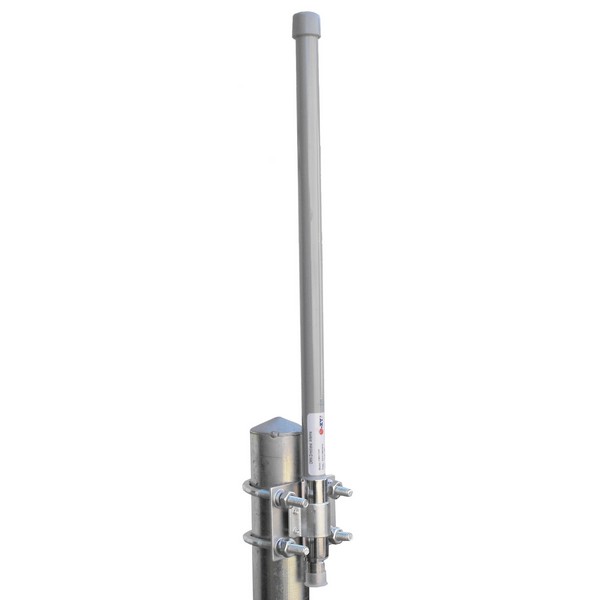

The new e-zy.net OM24V10INF OMNI Directional Antenna is made from sealed UV Stabilized Fiberglass with steel base terminated to an N-Type Female Connector.

The gain of this antenna is 10dBi and comes with 11o of Vertical BeamWidth.

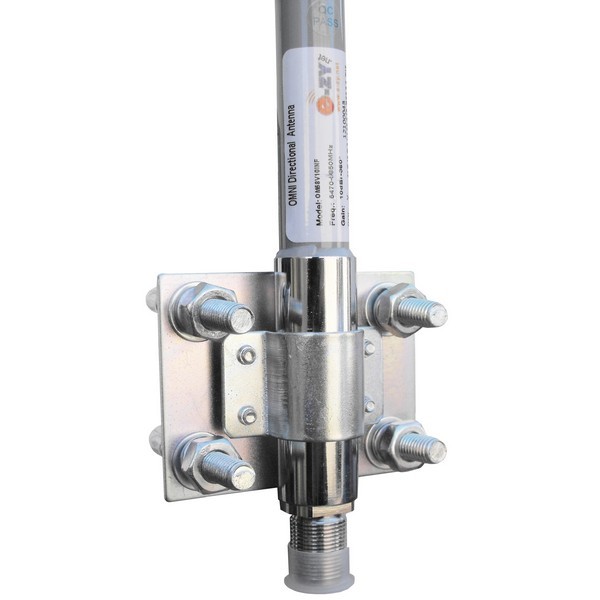

The antenna is supplied with steel mounting bracket and hardware for 25mm to 50mm OD pole.

The OM24V10INF is ideally suited for MultiPoint applications where wide coverage is desired.

TECHNICAL SPECIFICATIONS
Frequency 2400-2485MHz
Gain 10dBi
Polarization Vertical
Vertical BeamWidth 11°
Horizontal BeamWidth 360°
Impedance 50 Ohm
Max. Input Power 50 Watts
V.S.W.R. <1.5:1 avg.
Weight 1.1 Kgr
Length 1000mm
Diameter 19mm
Radome Material Grey Fiberglass
Mounting 25mm to 50mm
Rated Wind Velocity 58m/s
Package Contents:

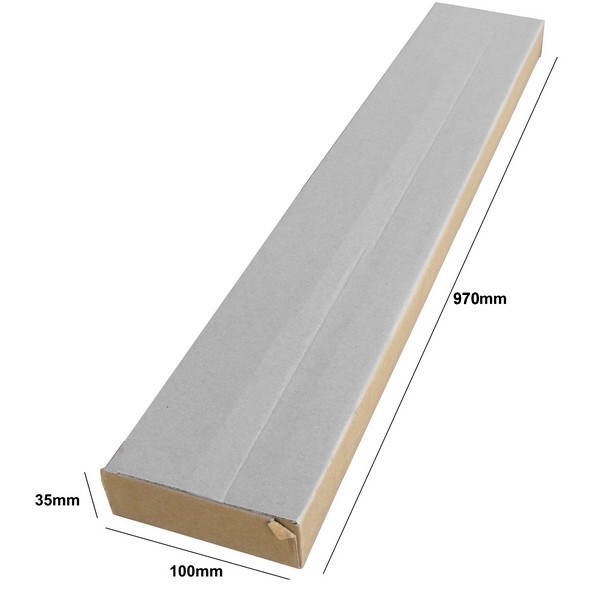

1x OMNI Antenna in brown carton
1x Mounting Bracket
