2400-2485MHz 10dBi OMNI Antenna MESH [EZ-OM24V10MNM]

Product Links
pdf Link Datasheet

2400-2485MHz 10dBi OMNI Antenna MESH

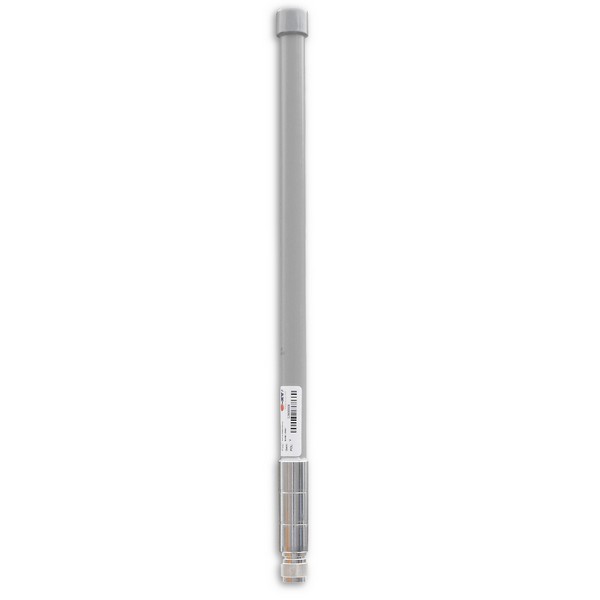

The new e-zy.net OM24V10MNM OMNI Directional Antenna is made from sealed UV-Inhibited Polymer and comes with N-Type Male connector.

The gain of this antenna is 10dBi and comes with 10o of Vertical BeamWidth.

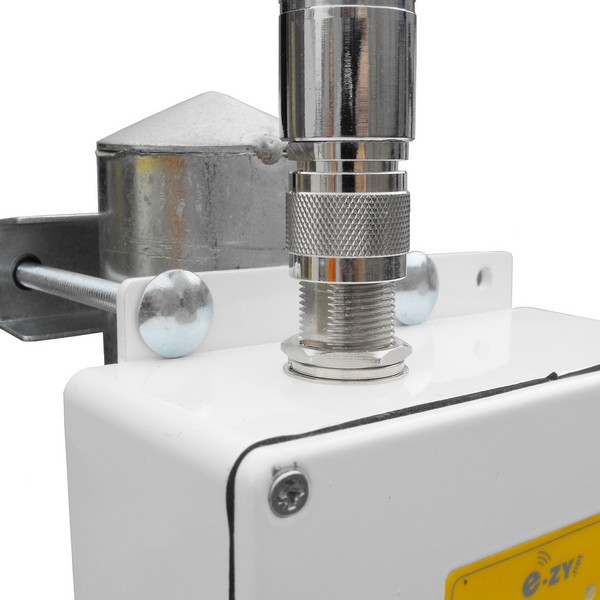

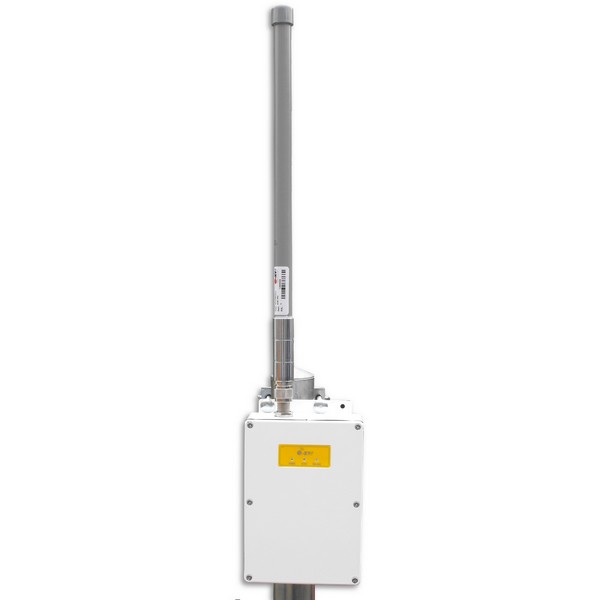

The OMNI is built to be mounted directly on the outdoor case to serve MESH infrastructures.

The OM24V08MNM is ideally suited for MESH applications where wide coverage is desired.

Note : There is no mounting bracket supplied with this OMNI

TECHNICAL SPECIFICATIONS
Frequency 2400-2485MHz
Gain 10dBi
Polarization Vertical
Vertical BeamWidth 11°
Horizontal BeamWidth 360°
Impedance 50 Ohm
Max. Input Power 50 Watts
V.S.W.R. <1.5:1 avg.
Weight 1.1 Kgr
Length 1000mm
Diameter 19mm
Radome Material Grey Fiberglass
Mounting 25mm to 50mm
Rated Wind Velocity 58m/s

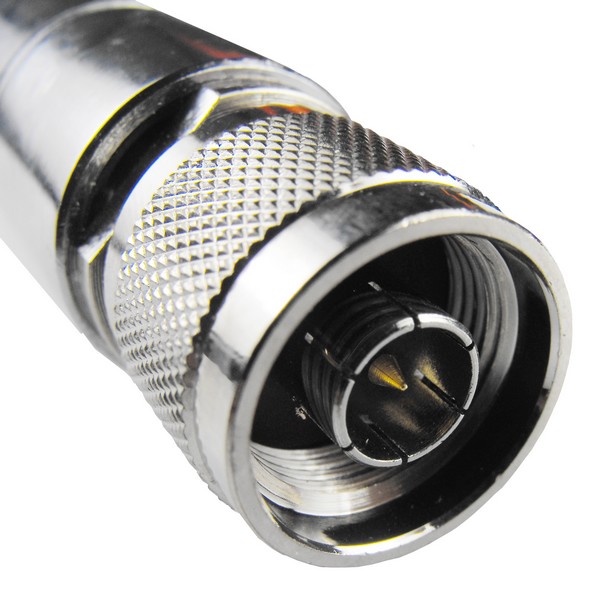

Connector N-Type Male
Package Contents:

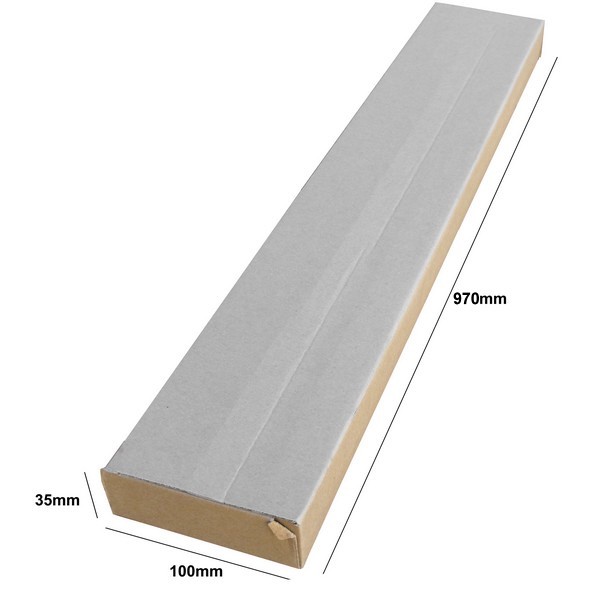

1x OMNI Antenna in brown carton
