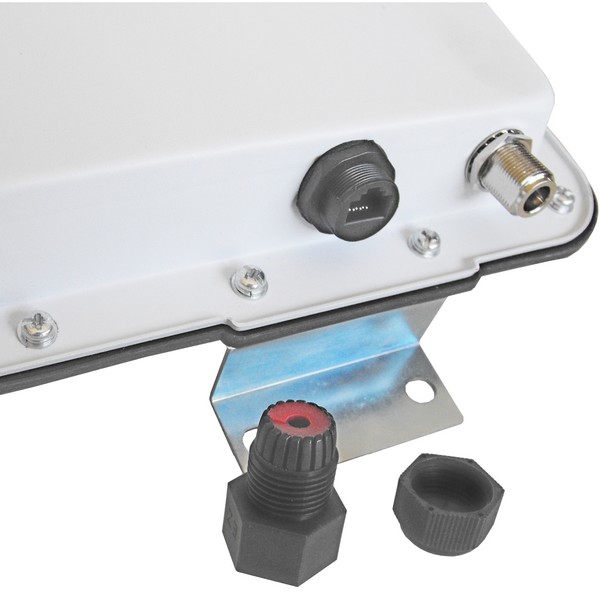

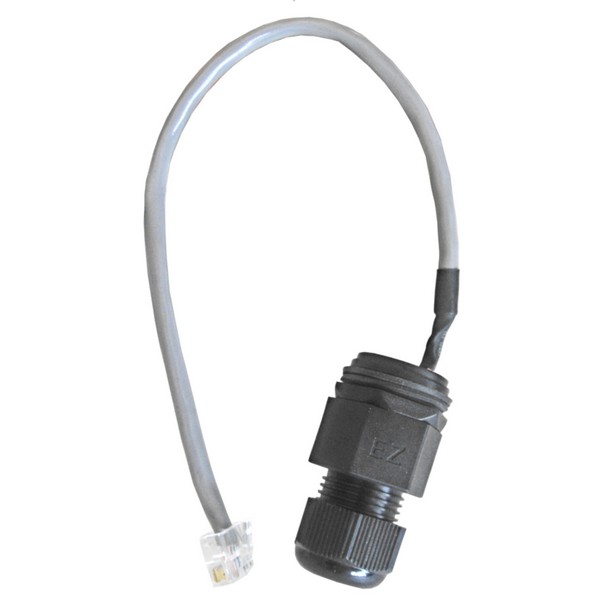

1 x Ethernet and 4 x N-Type holes, Steel Outdoor Enclosure.
Industrial Steel Design Designed to withstand the toughest environments, the EZ-SOE01W outdoor enclosure is a light, yet very solid wireless outdoor enclosure that fits most boards in today's market. The EZ-SOE01W is powder coated white. Rated NEMA-67 provides complete protection against ingress of dust (6) as well as protection against immersion in water (7)

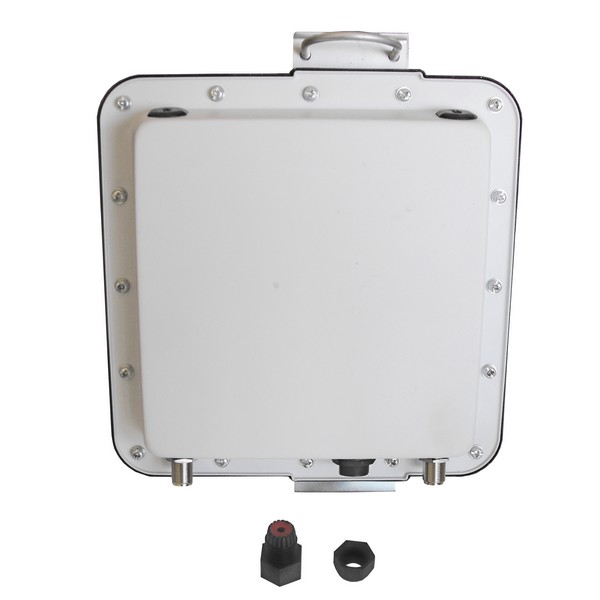

Multiple Antenna, Ethernet Options The N-Type antennas connectors are placed as far as possible from each other in order to increase spatial diversity and decrease RF grounding from the mounting mast. Multiple Antennas can be used for repeater operation, multiple band or MIMO smart antenna applications.

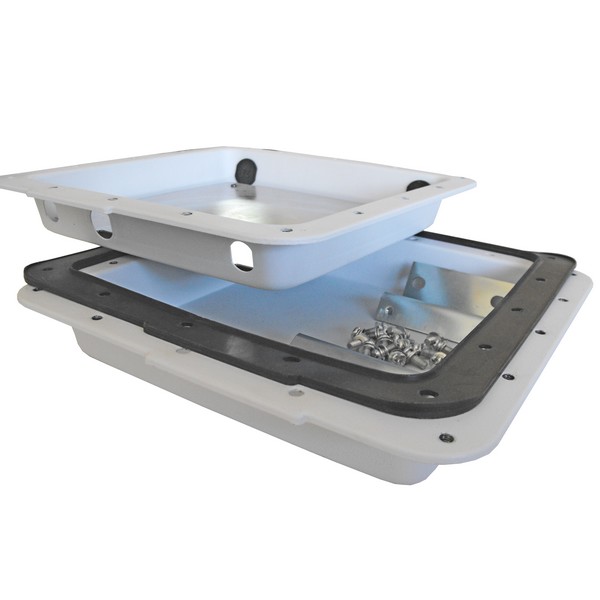

Thermal Characteristics - Enclosure Seal Operating temperature -60C to 230C - Heat Trap: +6.5 Celsius under full sun (~100,000 Lux) - Temperature raise using a 5-10Watt heat source : +5.5 Celsius

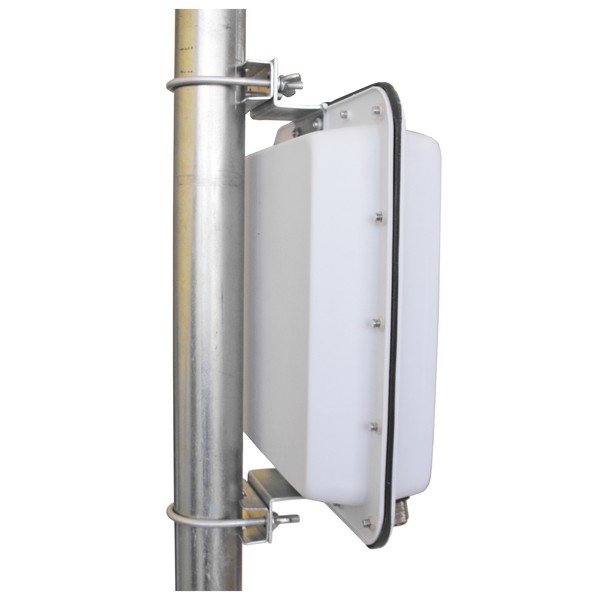

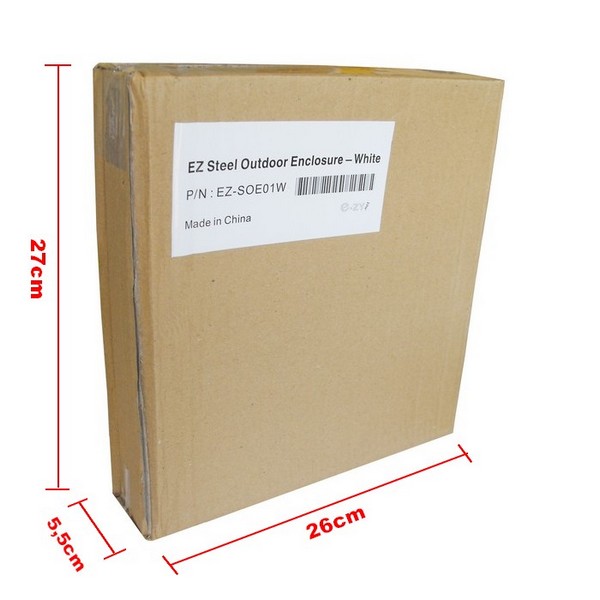

Mechanical Characteristics - Inside measurements: 200mm x 200mm x 70mm - Wall thickness: 1mm - Supports masts up to 50mm diameter

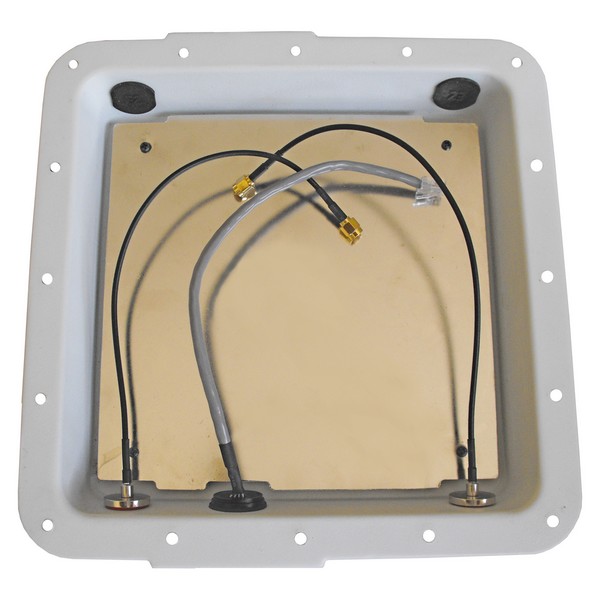

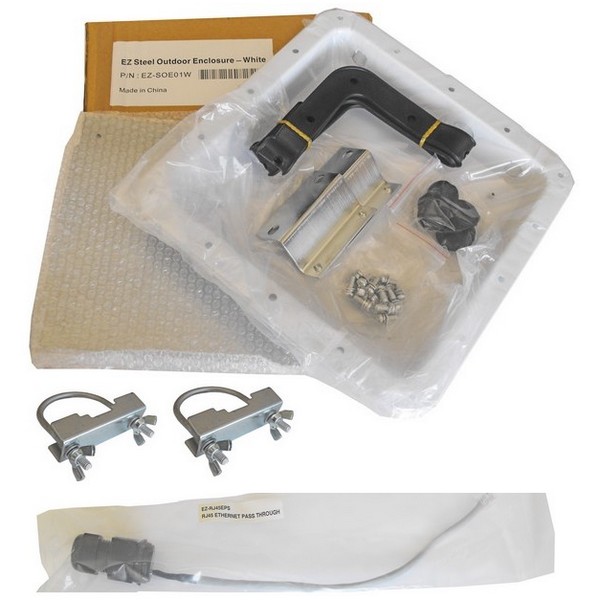

Note: Illustrated mast, antennas and pigtails are not included
