0-6GHz Lightning Arrestor N-Male to N-Female bulkhead [EZ-SA6MNB]

0-6GHz Lightning Arrestor N-Male to N-Female bulkhead

Product Links
pdf Link Datasheet

The EZ-SA6MNB is a very high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz. The unit features a bulkhead N-Female connector with a rubber "O"-ring seal for mounting through an enclosure wall.

Due to its superior RF performance the EZ-SA6MNB unit is ideal for IEEE 802.11a and other 5.2 - 5.8 GHz ISM and UNII applications, as well as 3.5 GHz WLL applications. Since this protector will pass DC it is suitable for applications where DC is carried through the coax cable such as remote amplifiers and LNA's.


Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment.

Use the Surge Protector to connect a wireless device, to an external antenna and protect your entire network from catastrophic electrical surges.

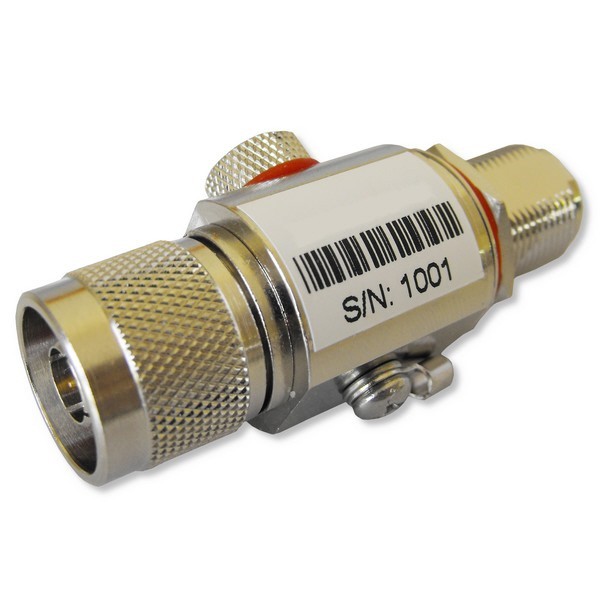

EZ SA6MNB2

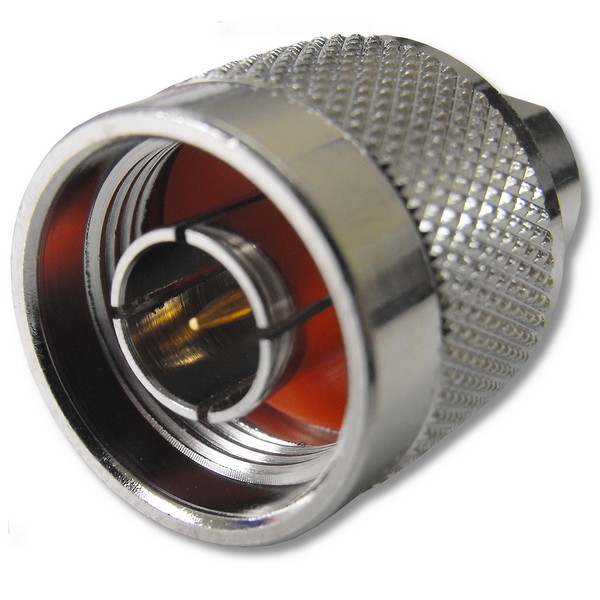

NM7NB
